一、进口三通法兰球阀概述

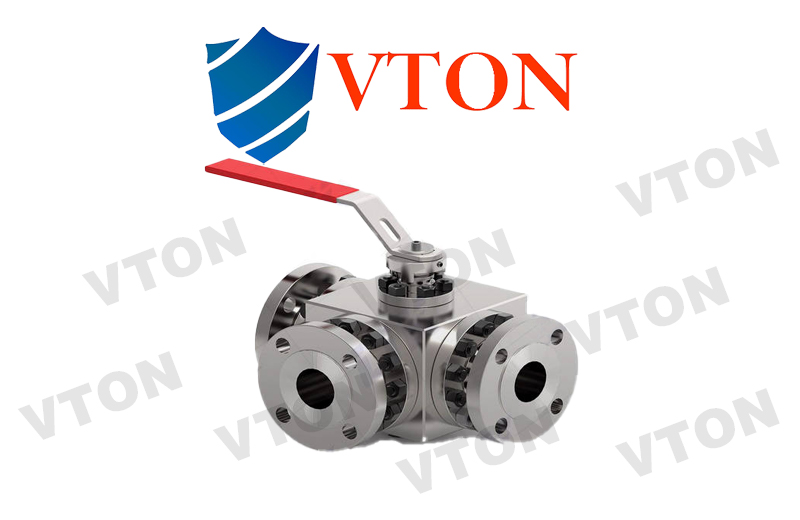

进口三通法兰球阀（美国威盾VTON），Three way flange ball valve，也叫法兰三通球阀，三通不锈钢球阀，T型三通球阀，L型三通球阀，是指由三个通道的球阀，球体上有T型或者L型的通孔，可实现对介质的分类或者合流，和换向的作用的球阀。三通球阀有T形三通球阀和L形三通球阀。

T形三通球阀能使三条正交的管道相互联通和切断第三条通道，起分流、合流作用。

L形三通只能连接相互正交的两条管道，起换向分配作用。

适用于液体、气体、粉体等介质的汇合、分流及分配，适用于石油、化工、电力等企业部门输送各种气体、液体、粉体等介质的管道、储罐、容器设备上汇合或分流装置。

Three way flange ball valve (VTON, USA), also known as flange three-way ball valve, three-way stainless steel ball valve, T-shaped three-way ball valve, L-shaped three-way ball valve, refers to a ball valve with three channels, and the ball has T-shaped or L-shaped through-hole on the ball, which can achieve the classification or merging of the medium, and the function of reversing. There are T-shaped three-way ball valves and L-shaped three-way ball valves.

The T-shaped three-way ball valve can connect three orthogonal pipelines and cut off the third channel, playing a role in diversion and convergence.

The L-shaped tee can only connect two mutually orthogonal pipes, serving as a directional distribution.

Suitable for the convergence, diversion, and distribution of liquids, gases, powders, and other media, and suitable for the convergence or diversion devices on pipelines, storage tanks, container equipment for transporting various gases, liquids, powders and other media in enterprises such as petroleum, chemical, and power.

二、进口三通球阀原理

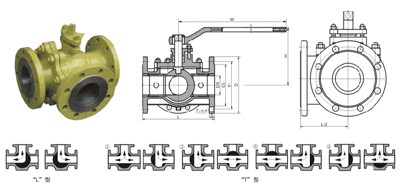

阀门按流通形式分为“L型”（3位2通）、“T型”（3位2通）两种类型。其中“L型”可实现对介质流向进行如‘图A’的两种切换功能；“T型”可实现对介质的分流或混流，如‘图B’的四种切换功能。可按工况要求选择其中一种。

三、进口三通法兰球阀特点

1、三通球阀在结构上采用一体化结构。

2、三通球芯分T形和L形，使用寿命长，流通能力大，阻力小。

3、气动三通球阀按作用式分单作用和双作用两种型式，单作用式的特点是一旦动力源发生故障时，球阀将处于控制系统要求的状态。

4、面阀座的密封型式，法兰联接少，可靠性高，设计实现了轻量化。

5、阀座采用PTFE材料，阀门的启团力小，开关轻便。

6、阀门采用三体结构，拆装方便，便于现场维修、更换、其流道通畅，流体阻力小。

7、具有防静电结构，下装式阀杆及填料结构设计，防止阀杆脱落，体积小节约安装空间。

四、进口三通法兰球阀性能参数

五、进口三通法兰球阀主要零件材料

六、进口三通法兰球阀主要外形图
