一、进口电动V型调节球阀

进口电动V型调节球阀（美国威盾VTON），Electric V type regulating ball valve，也叫电动V型法兰球阀，电动V型不锈钢球阀，是指由智能型电动执行器和带有V型通孔的球阀组成，对含有纤维或微小固体颗粒的悬浊液介质的流量进行智能化自动调节的球阀。由于球芯带有 V 型结构，对阀座具有剪切作用。广泛适用于造纸、化工、冶金等工业企业中含有纤维或微小固体颗粒的悬浊液介质中对有关工艺参数的控制，特别适用于制浆、造纸生产过程中的纸浆、白水、黑液、白液等悬浮颗粒的流体及浓、浊浆状流体介质的自动调节。

Electric V-type regulating ball valve (VTON), also known as electric V-type flange ball valve or electric V-type stainless steel ball valve, refers to a ball valve composed of an intelligent electric actuator and a ball valve with a V-shaped through-hole, which intelligently and automatically adjusts the flow rate of suspended liquid media containing fibers or small solid particles. Due to the V-shaped structure of the ball core, it has a shearing effect on the valve seat. Widely applicable to the control of relevant process parameters in suspension media containing fibers or small solid particles in industrial enterprises such as papermaking, chemical industry, metallurgy, etc. It is particularly suitable for the automatic adjustment of suspended particles such as pulp, white water, black liquid, and white liquid in pulp and paper production processes, as well as concentrated and turbid fluid media.

二、进口电动V型调节球阀产品特点

1、电动V型调节球阀具有弹性负荷压力辅助密封座保证阀座与球芯自努至终的紧密接触。

2、电动V型调节球阀具有整体式的阀体结构，不存在产生潜在泄漏的可能。

3、电动V型调节球阀具有等百分比特性，有很宽的控制范围和特别稳定的控制过程，可广泛用应于多种工艺流程中。

4、电动V型调节球阀阀杆和球芯采用渐开线花键连接，当齿廓受载时，齿上有径向力能起自动定心作用，且各齿受力均匀使之强度高、寿命长

1. The electric V-shaped regulating ball valve has an elastic load pressure auxiliary sealing seat to ensure close contact between the valve seat and the ball core from the beginning to the end.

2. The electric V-shaped regulating ball valve has an integral valve body structure and there is no possibility of potential leakage.

3. The electric V-shaped regulating ball valve has equal percentage characteristics, a wide control range, and a particularly stable control process, which can be widely used in various process flows.

4. The valve stem and core of the electric V-shaped regulating ball valve are connected by involute splines. When the tooth profile is loaded, there is a radial force on the tooth that can automatically center, and the force on each tooth is uniform, resulting in high strength and long service life.

三、进口电动V型调节球阀性能参数

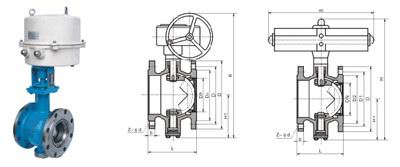

四、进口电动V型调节球阀主要外形和连接尺寸
