一、进口低温不锈钢减压阀概述
进口低温不锈钢减压阀,也叫进口低温调压阀,进口低温压力调节阀,进口低温减压稳压阀,是指采用经深冷处理的低温不锈钢材料,在低温贮槽上用于将低温液体(液氧,液氮,液氩,液化天然气,LO2、LN2、LAR、LNG等)的压力保持在某一规定范围内,也就是将阀前进口的高压力减到并稳定在阀后出口所需要的压力值的阀门。
美国威盾VTON低温减压阀主要产品有进口低温不锈钢减压阀,进口低温调压阀,进口低温泄压阀,进口低温不锈钢减压阀,进口低温焊接减压阀,进口低温法兰减压阀,进口低温压力调节阀,进口LNG低温减压阀,进口液氮减压阀,进口液氧减压阀,进口液氩减压阀,进口液化天然气减压阀,进口低温深冷减压阀等。
Low temperature stainless steel pressure reducing valve, also known as low temperature pressure regulating valve, low temperature pressure regulating valve, and low temperature pressure reducing and stabilizing valve, refers to a valve that uses low-temperature stainless steel material that has undergone cryogenic treatment to maintain the pressure of low-temperature liquids (liquid oxygen, liquid nitrogen, liquid argon, liquefied natural gas, LO2, LN2, LAR, LNG, etc.) within a specified range in a low-temperature storage tank, that is, to reduce the high pressure at the inlet before the valve to the pressure value required at the outlet after the valve and stabilize it.
VTON's main products include imported low-temperature stainless steel pressure reducing valves, imported low-temperature pressure regulating valves, imported low-temperature pressure relief valves, imported low-temperature stainless steel pressure reducing valves, imported low-temperature welding pressure reducing valves, imported low-temperature flange pressure reducing valves, imported low-temperature pressure regulating valves, imported LNG low-temperature pressure reducing valves, imported liquid nitrogen pressure reducing valves, imported liquid oxygen pressure reducing valves, imported liquid argon pressure reducing valves, imported liquefied natural gas pressure reducing valves, imported low-temperature cryogenic pressure reducing valves, etc.

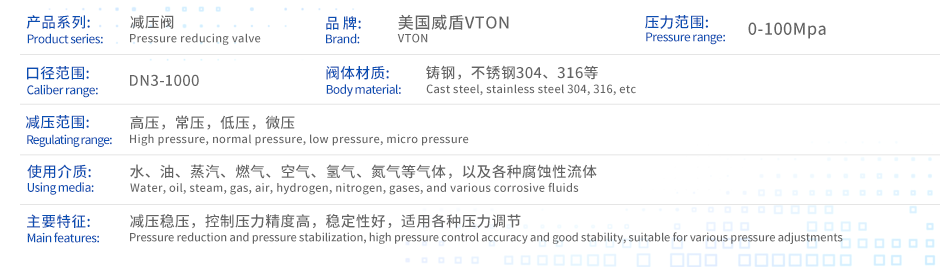

二、进口低温不锈钢减压阀参数
公称通径:DN10-100 | 适用温度:-196℃-80℃ | |
公称压力:2.5 Mpa | 强度试验:3.75 Mpa | |
连接方式:螺纹连接、焊接 | 调压范围为:0.1-0.8Mpa,0.2~1.0MPa,0.8~1.6MPa | |
适用介质:液氧、液氮、液氩、液空、液化天然气、LO2、LN2、LAR、LNG等 | 适用于:空分设备、石油、天然气液化分离设备、化工尾气分离设备 |
三、进口低温不锈钢减压阀产品特点
1、低温减压阀结构紧凑、体积小、重量轻。调节灵敏,稳定性好。
2、低温减压阀带可调装置,压力调节方便。
3、低温减压阀阀门经低温深冷处理,可耐-196℃低温。
4、低温减压阀垫片具有在常温下、低温状态及温度变化下能可靠密封性和复原性,密封性能好。
四、进口低温不锈钢减压阀尺寸图
