一、进口自由浮球式疏水阀产品概述

进口自由浮球式疏水阀，Free ball float type steam trap也叫浮球式疏水阀，浮球式蒸汽疏水阀，浮球式疏水器，浮球式蒸汽疏水器，利用浮力原理，浮球根据凝结水量的多少，随水位的变化而作升降，自动调节阀座孔的开度，连续排放凝结水，当凝结水停止进入时，浮球降的底部，回到关闭位置，排水停止，由于排水阀座孔总是在凝结水位以下，形成水封、水、气自然分离，达到无蒸汽泄漏。

美国威盾自由浮球式疏水阀主要产品有铸钢自由浮球式疏水阀，不锈钢自由浮球式疏水阀，自由浮球式蒸汽疏水阀，自由浮球式法兰疏水阀，自由浮球式螺纹疏水阀，适用于压力低、排水量低和温度稳定性要求高,不宜带存凝结水的蒸汽设备更为适用。

Free ball float type steam trap, also known as float ball steam trap, float ball steam trap, float ball steam trap, float ball steam trap, uses the principle of buoyancy. The float ball rises and falls according to the amount of condensate water, changes with the water level, and automatically adjusts the opening of the valve seat hole to continuously discharge condensate. When condensate stops entering, the float ball drops to the bottom, returns to the closed position, and the drainage stops. Since the drainage valve seat hole is always below the condensate water level, a water seal, water, and gas are naturally separated, achieving no steam leakage.

VTON's main products include cast steel free float trap, stainless steel free float trap, free float steam trap, free float flange trap, and free float threaded trap. They are suitable for steam equipment with low pressure, low displacement, and high temperature stability requirements, and are not suitable for storing condensate.

二、进口自由浮球式蒸汽疏水阀特征

1、自由浮球式蒸汽疏水阀能拓饱和凝结水，回执设备内不含有水先积聚，从而获得最高的加热效率

2、自由浮球式蒸汽疏水阀蒸汽压力变化时，不受影响，能连续工作性能稳定

3、自由浮球式蒸汽疏水阀漏汽变幻无常小，采用先进研磨工艺制造，浮球精度高，密封性能好

4、自由浮球式蒸汽疏水阀自动排空气性能好

5、自由浮球式蒸汽疏水阀寿命长，浮球的整个球面都可以做密封面，无集中磨损。

1. The free floating ball steam trap valve can expand saturated condensate water, and the return equipment does not contain water that accumulates first, thus achieving the highest heating efficiency

2. When the steam pressure of the free floating ball steam trap changes, it is not affected and can work continuously with stable performance

3. The free floating ball steam trap valve has small and unpredictable steam leakage, and is manufactured using advanced grinding technology. The floating ball has high precision and good sealing performance

4. The free floating ball steam trap valve has good automatic air discharge performance

5. The free float steam trap has a long service life, and the entire spherical surface of the float can be used as a sealing surface without concentrated wear.

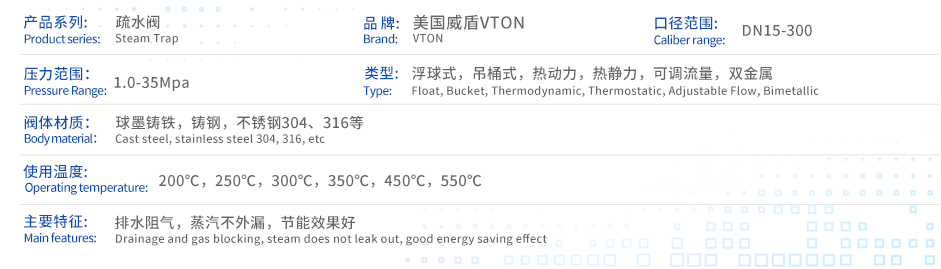

三、进口自由浮球式蒸汽疏水阀技术参数

四、内螺纹自由浮球式疏水阀外形图
