一、进口氟塑料磁力驱动泵概述

V-CQB-F型氟塑料磁力驱动泵，采用磁力耦合传动，不存在动密封点，因此彻底杜绝了一般轴传动式离心泵轴封处跑、冒、滴、漏的现象。其过流部件采用氟塑料工业陶瓷制成，具有优异的耐腐性及密封性，不老化、无毒素分解等优点。传动功率3kW以下或小于DN50mm的为全氟塑料磁力驱动泵。

The V-CQB-F fluoroplastic magnetic drive pump adopts magnetic coupling transmission and does not have dynamic sealing points, thus completely eliminating the phenomenon of running, emitting, dripping, and leaking at the shaft seal of general shaft driven centrifugal pumps. The overcurrent components are made of fluoroplastic industrial ceramics, which have excellent corrosion resistance and sealing properties, no aging, and no toxin decomposition. Perfluoroplastic magnetic drive pumps with transmission power below 3kW or less than DN50mm.

二、进口氟塑料磁力驱动泵产品特点

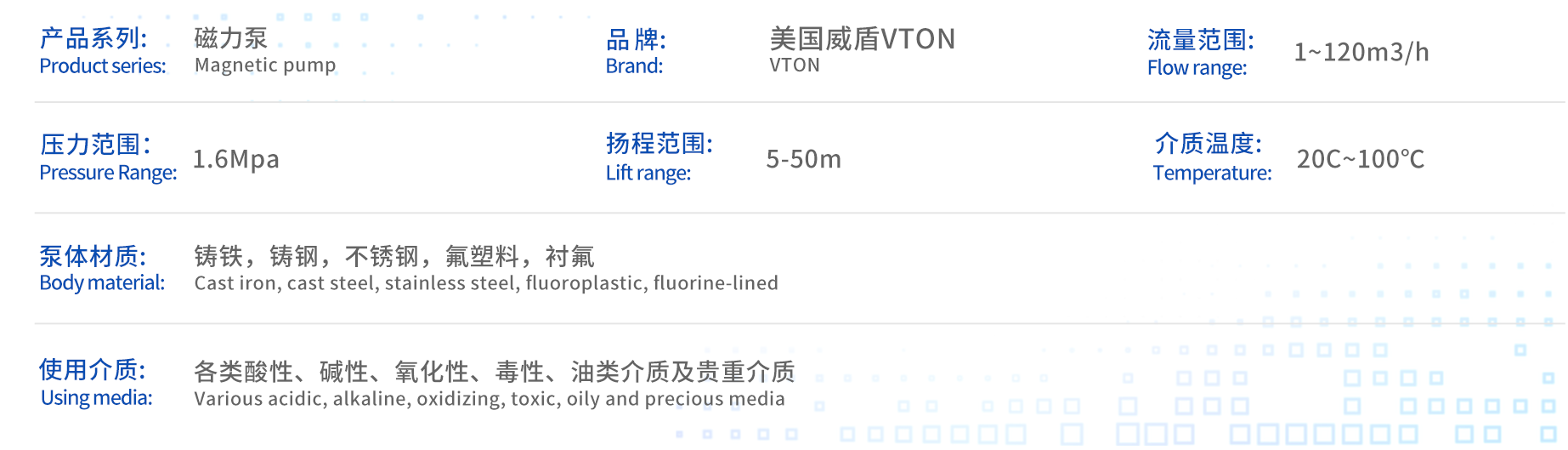

磁力泵结构紧凑、外形美观、体积小、噪音低、运行可靠、使用纵方便泵体外壳用金属材料固定，故泵体足以承托管道的重量，使用保养及为方便。流量：1.8-100m3/h 　扬程：8-32m　功率：0.12－22KW 适用温度：-20~100℃
The magnetic pump has a compact structure, beautiful appearance, small size, low noise, reliable operation, and convenient use. The pump body shell is fixed with metal materials, so the pump body is sufficient to support the weight of the pipeline, and is convenient for use and maintenance. Flow rate: 1.8-100m3/h Head: 8-32m Power: 0.12-22KW Applicable temperature: -20~100 ℃

三、产品用途

不含固体颗粒腐蚀液体、强酸、强碱、乙醇、漂白剂、照相液、硝酸、盐酸、氢氟酸、醋酸、氢氧化纳、丙酮、四氧乙烷、海水、盐水等等。

Does not contain corrosive liquids such as solid particles, strong acids, strong bases, ethanol, bleaching agents, photographic fluids, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, ethylene oxide, seawater, saltwater, etc.
