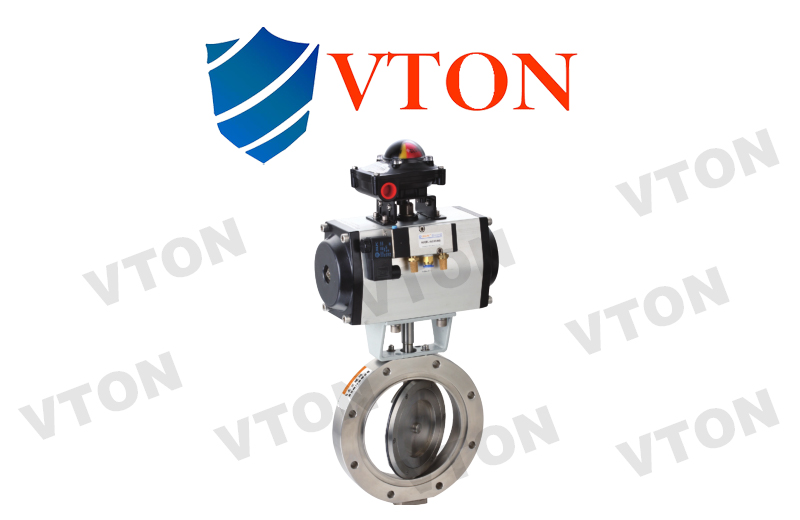

一、V-GIQ-A型系列气动高真空蝶阀概述

V-GIQ-A型系列气动高真空蝶阀适用于高真空系统中用来接通或截止气流之用。该阀以压缩空气为动力，通过电磁换向阀改变气路方向，执行气缸推动，使固定在转动轴上的阀板旋转90°实现阀门的开启和关闭。

适用的工作介质为空气和非腐蚀性气体。

The V-GIQ-A series pneumatic high vacuum butterfly valve is suitable for use in high vacuum systems to connect or cut off airflow. This valve is powered by compressed air and changes the direction of the air path through an electromagnetic directional valve. It executes cylinder pushing to rotate the valve plate fixed on the rotating shaft 90 ° to open and close the valve.

The applicable working media are air and non corrosive gases.

二、V-GIQ-A型系列气动高真空蝶阀主要性能参数
